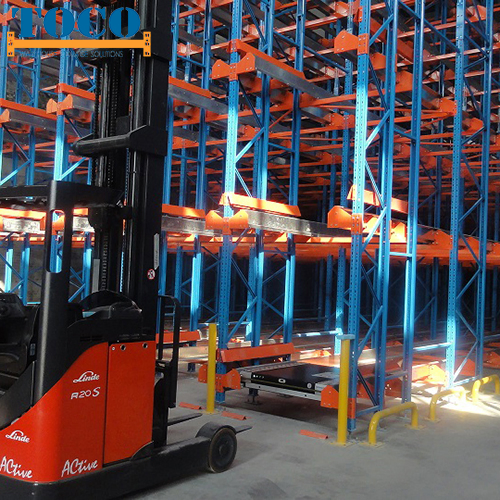

Autosat Compatible Pallet Shuttle Compact Pallet Racking for Cold Storage

Customization:	Available
After-sales Service:	Lifetime Technical Support
Warranty:	One Year

Technical Specifications

Model NO.

TRS-Standard

Usage

Beverage, Food, Industrial

Material

Steel

Structure

Rack

Type

Compact Storage

Mobility

Fixed

Height

5-15m

Weight

300kg

Certificate

ISO9001, CE

Load Weight

Up to 2000kg

Work Temperature

50 to -30 Degree

Production Capacity

3000 Tons Monthly

Product Overview

Radio Pallet Shuttle Shelving Systems are energy efficient, with battery charging 3 hours, and keep working 8 hours in temperatures from 50 down to -30 degrees. The Semi-Automated Shuttle Systems utilize forklifts and are modular and easily converted to a fully automated system, as your business needs and labor demands require.

Shuttle channel racking for high throughput performance: Offers advantages ranging from high throughput performance during complete filling and emptying of a pallet channel, to collision-free storage and retrieval of pallets as well as optimum space utilization thanks to less operation aisles required.

System Parameters

Radio Pallet Shuttle Rack Details
Capacity	Up to 2000kg/Pallet
Material	Q235 or Q345 High Grade Steel
Design Standards	Meet FEM, AS4084
Finish	Powder Coating or Galvanized
Main Components	Frame (Upright, Bracing, foot plate), Beam, Frame Tie
Lifespan	10+ Years

Key Features

High density storage system, more than 80% of warehouse space utilization.
Supports both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) access modes.
Enhanced safety: Forklifts do not enter the racking, protecting operators and equipment.
Improved turnover speed and work efficiency.
Electricity automated system reduces energy consumption and operational costs.

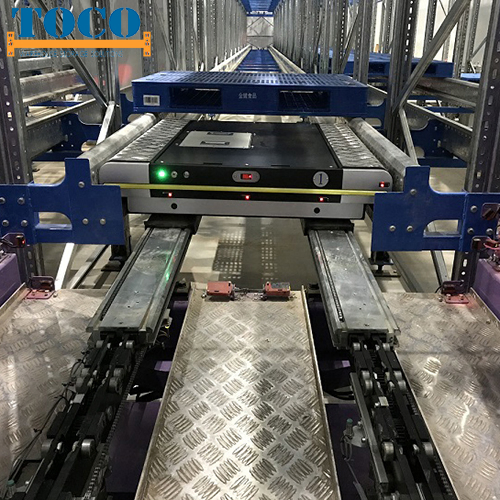

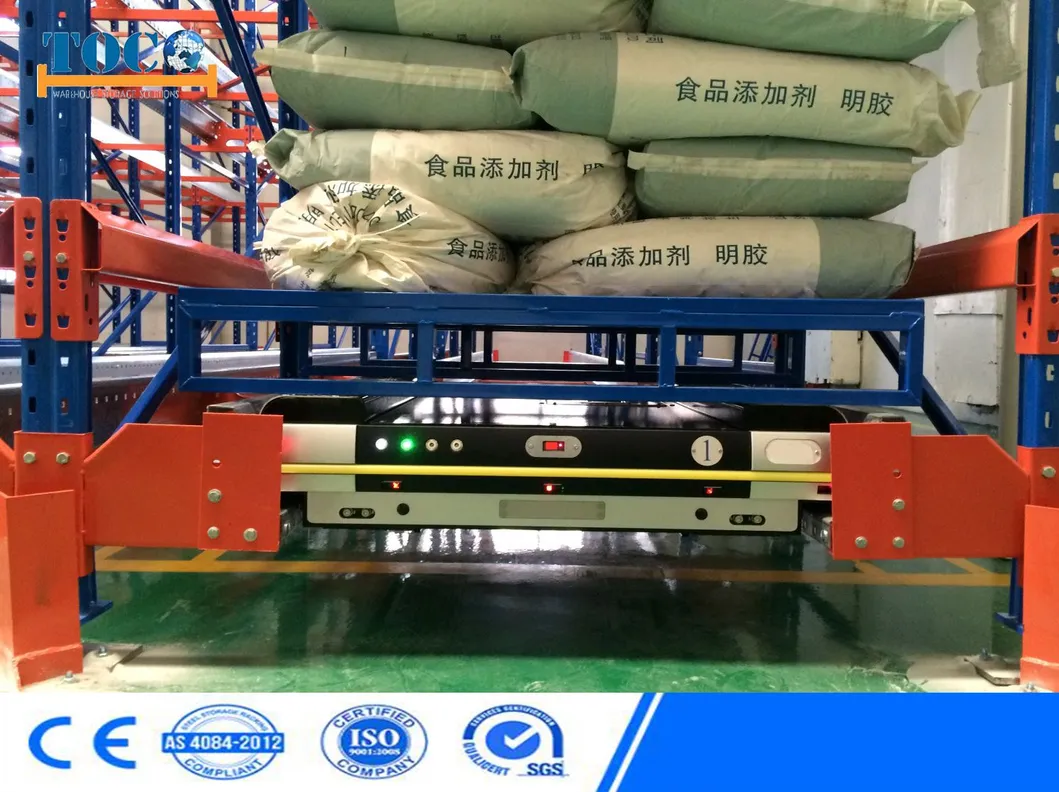

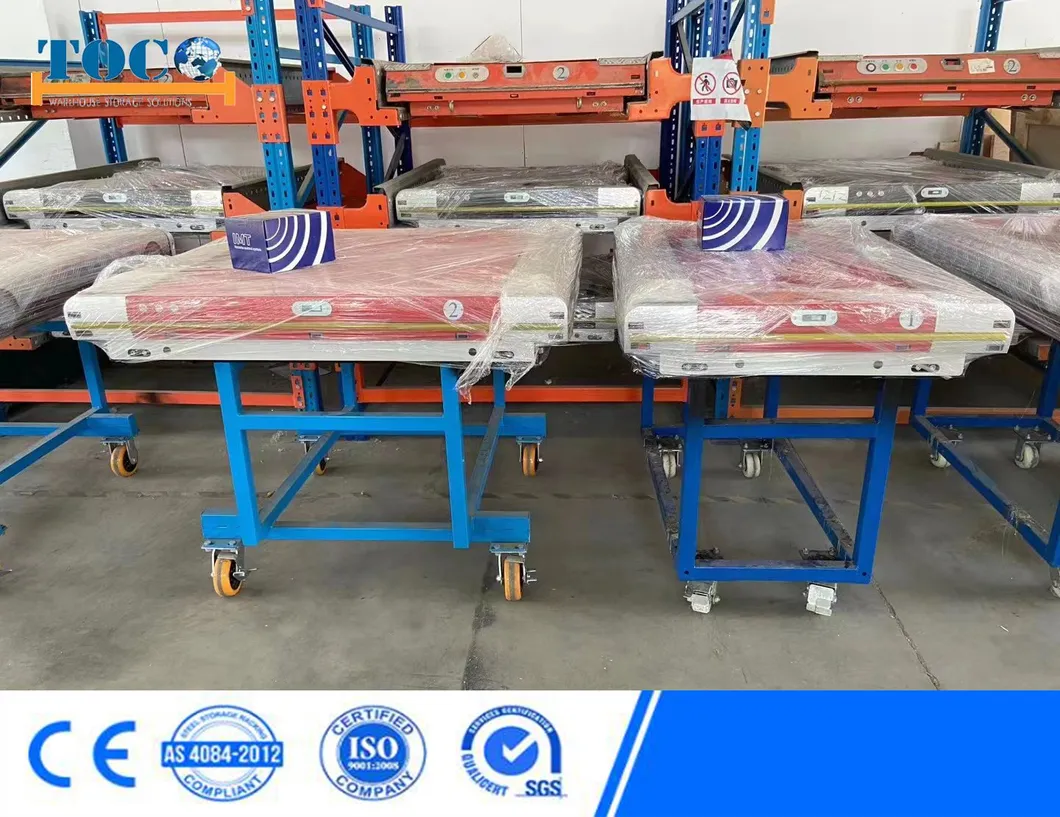

Radio Shuttle Specifications

Loading capacity	Max 1500kg
Running speed	Empty: 1.0m/s \| Full: 0.8m/s
Drive motor	Brushless servo motor 48VDC 600W
Lift height	≤45mm
Control system	Siemens S7-1200 PLC
Power supply	Lithium battery (48V, 30AH)
Running time	≥8 hours
Ambient temperature	0ºC~50ºC (Special versions for -30ºC)

Ideal Application Scenarios

Compact storage of palletized goods and mass storage of products.
Warehouses with medium to high consumption SKUs.
Facilities requiring extremely high throughput and max space utilization.

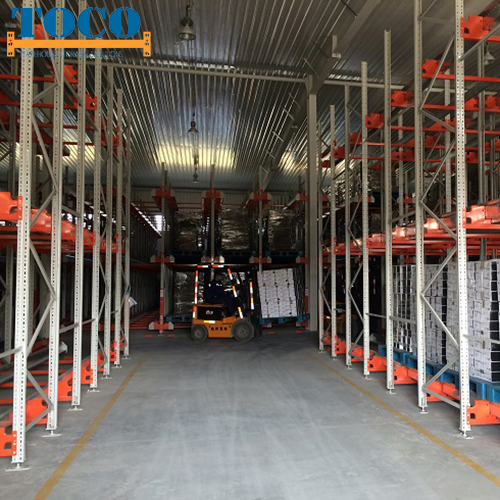

Cold storage environments to reduce cooled volumes and operator exposure.
Deep racking with mass inflows and outflows of the same product.

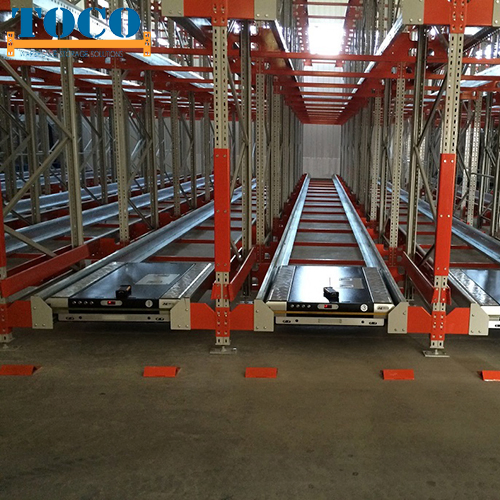

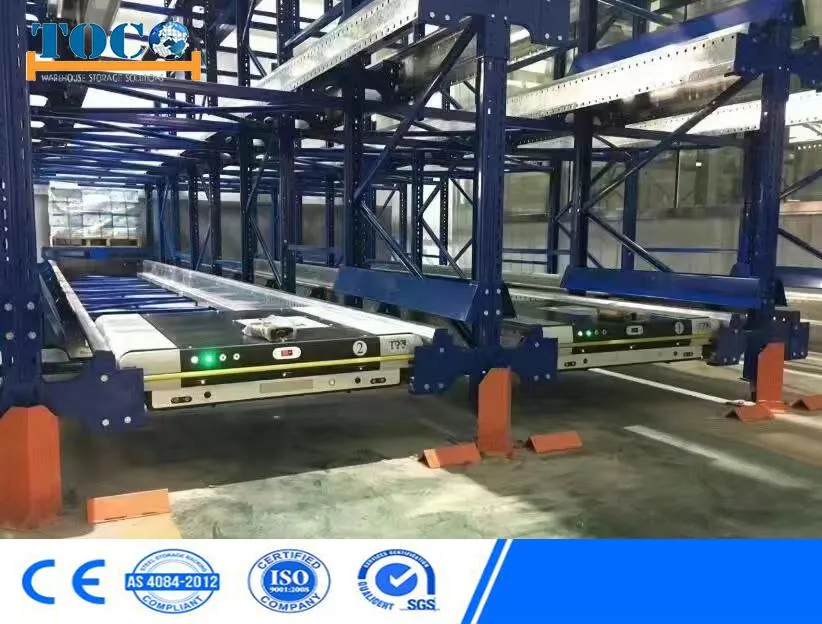

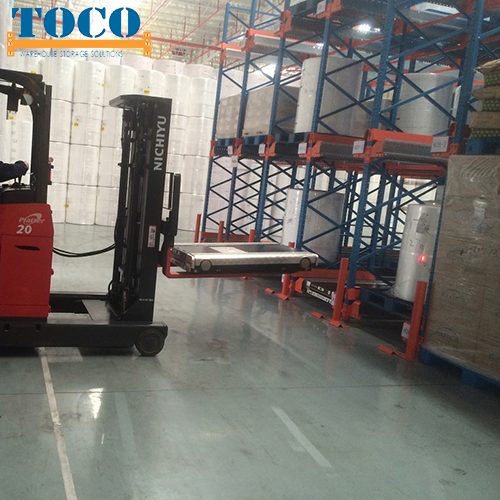

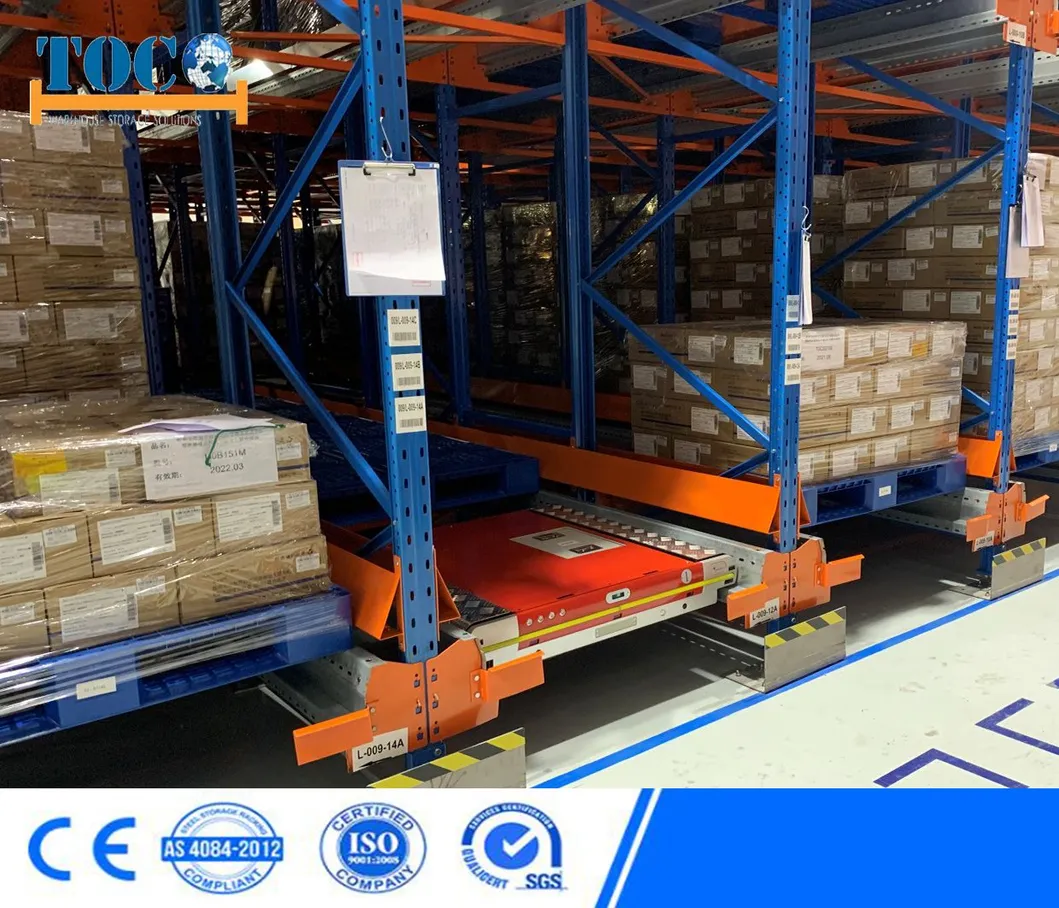

System Gallery

Frequently Asked Questions

What are the available trade and payment terms?

We accept T/T (40% deposit, balance against B/L), irrevocable L/C at sight, or O/A terms. Standard lead time is 14-21 working days after deposit.

How are the goods delivered?

Goods are typically delivered via sea freight through major shipping lines or designated forwarders. For urgent parts, air freight via TNT, DHL, or Fedex is available.

What is the standard order and production process?

The process involves: Solution Design → Drawings Approval → Pricing → Order Confirmation → Deposit → Manufacturing → Inspection → Balance Payment → Delivery.

What are the main advantages of this system?

Key advantages include direct factory pricing, flexible payment options (O/A 30-60 days), fast delivery capabilities, and a comprehensive one-year warranty.

Is there a Minimum Order Quantity (MOQ)?

There is no MOQ requirement for most standard products. MOQ only applies to new developed or highly customized items. A 20ft container is recommended for cost efficiency.

How is the installation handled?

We provide detailed assembly instructions with all documentation. If required, professional engineers and experienced installers can be sent to assist with the setup.
