Heavy Duty Warehouse Storage Rack Pallet Racking System

1 / 5

Heavy Duty Warehouse Storage Rack Pallet Racking System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Specifications

Structure:Rack

Type:Pallet Racking

Mobility:Adjustable

Height:3-12m

Weight:500-4000kg

Closed:Open

Surface Treatment:Powder Coating

Feature:Corrosion Protection

Certification:CE

Production Capacity:80,000 tons/Year

HS Code:73089000

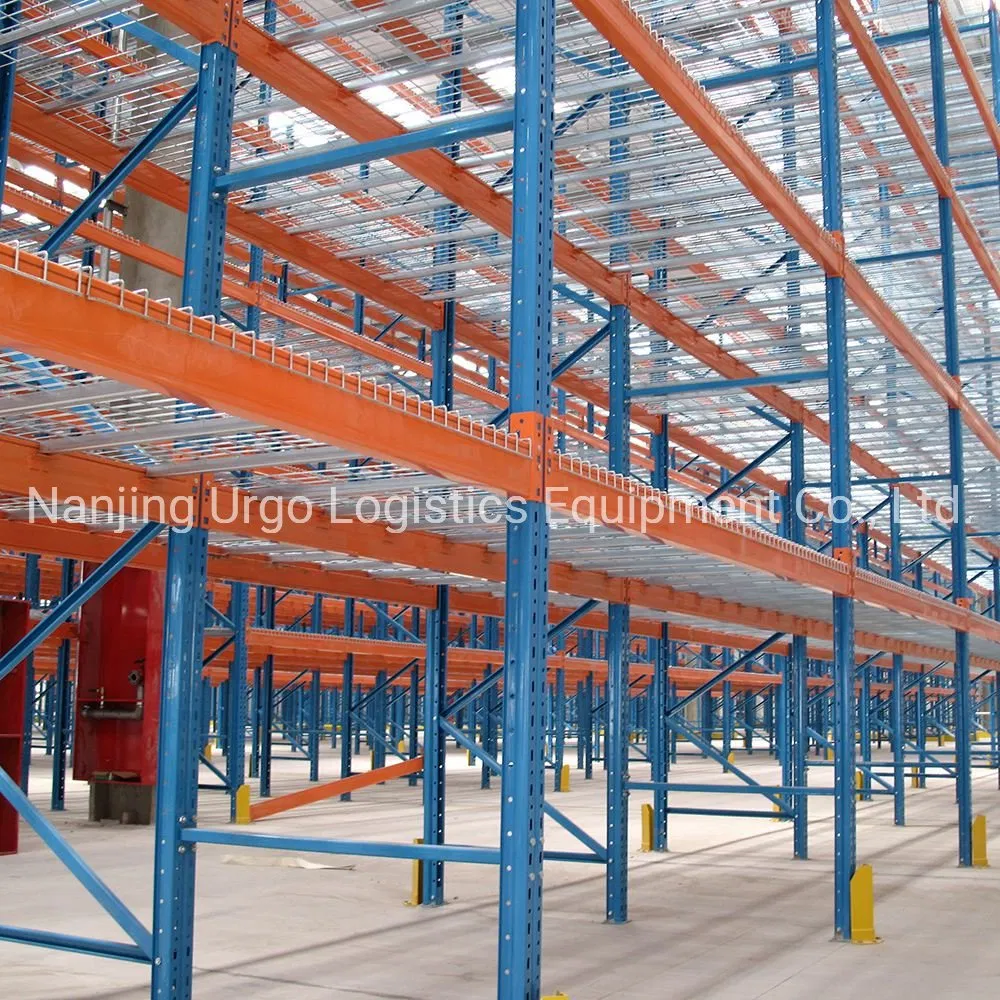

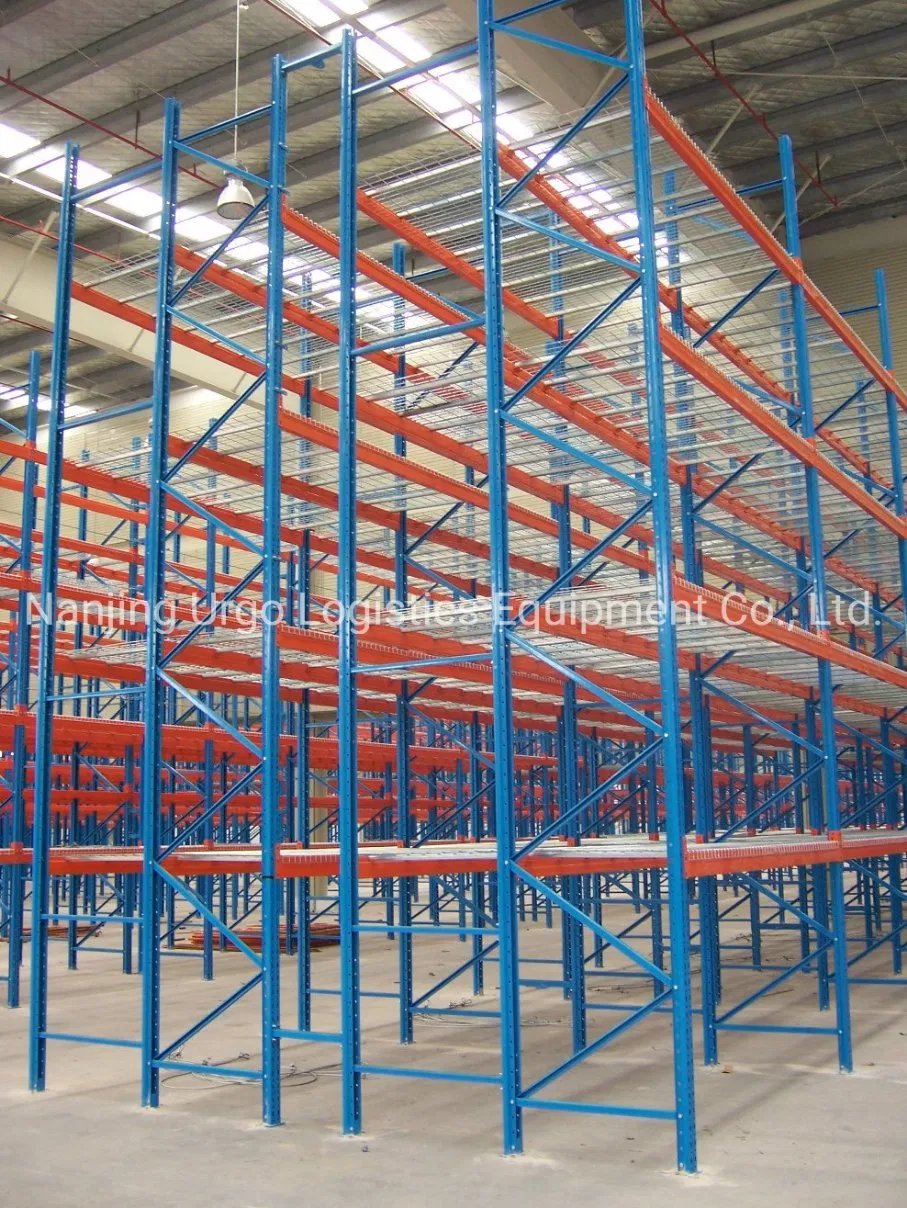

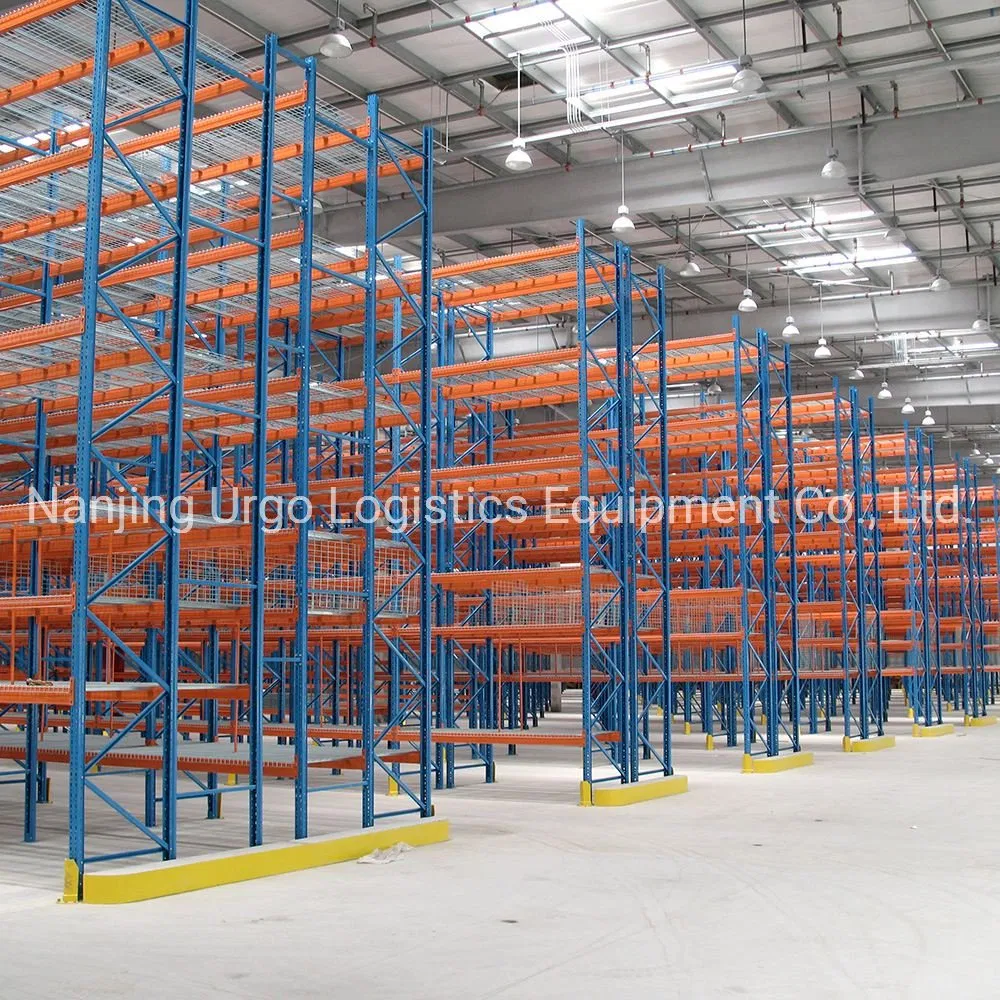

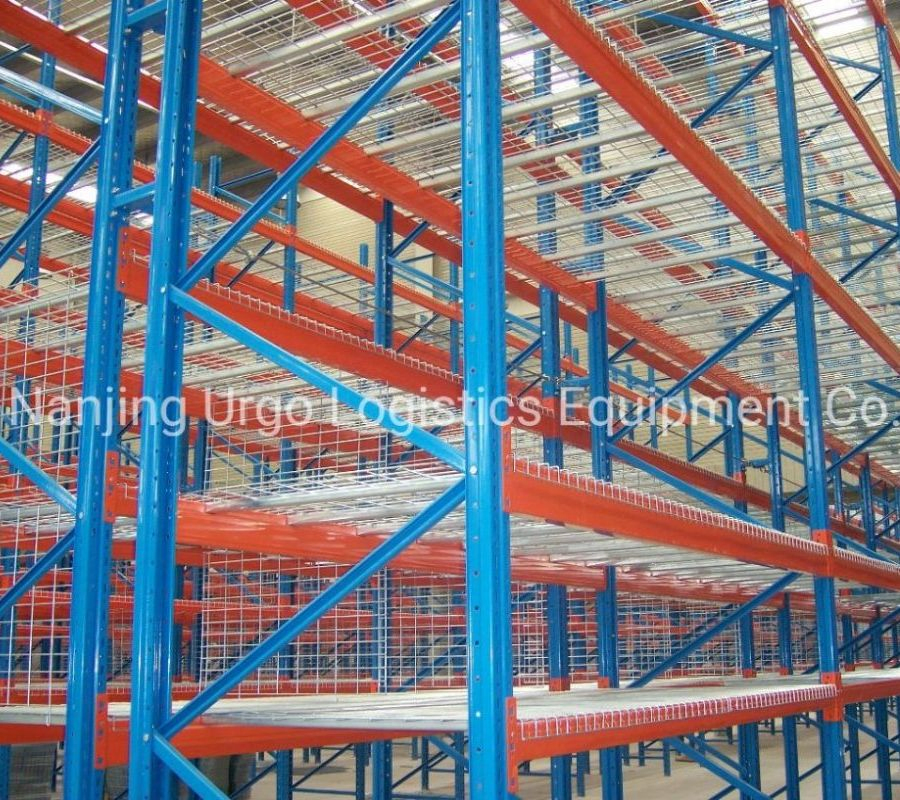

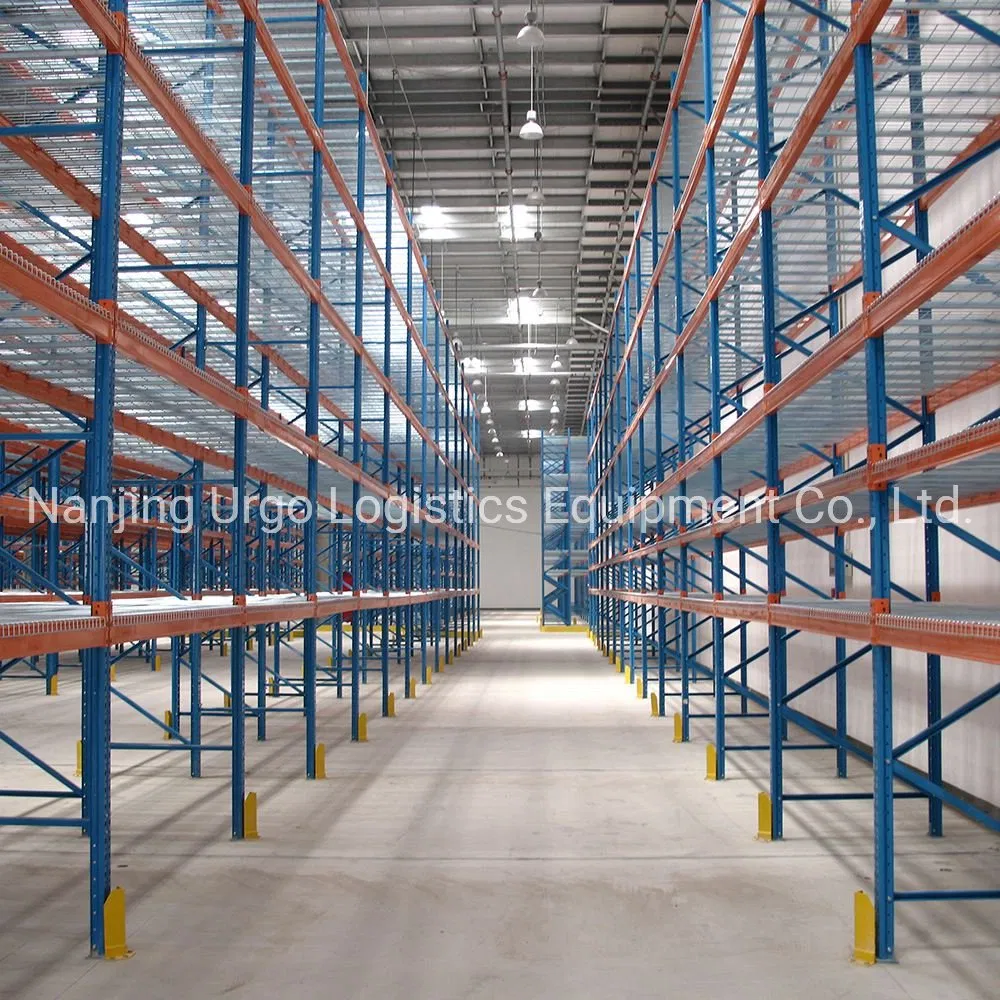

Selective Pallet Rack System

Selective pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.

✔ 100% accessibility to individual pallets

✔ Easy picking lower levels

✔ Good storage density

✔ Easily installed and repositioned

✔ No special lift trucks required

Column Profiles

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000 KG

Beam Loading Capacity (Box Beam)

Specification (mm)	1500mm	2300mm	2700mm	3300mm	3900mm
80 x 50 x 1.5	3000	1340	1010	-	-
100 x 50 x 1.5	-	2260	1680	1040	-
120 x 50 x 1.5	-	3200	2358	1518	-
140 x 50 x 1.5	-	-	3330	2370	-
160 x 50 x 2.0	-	-	-	4170	2840

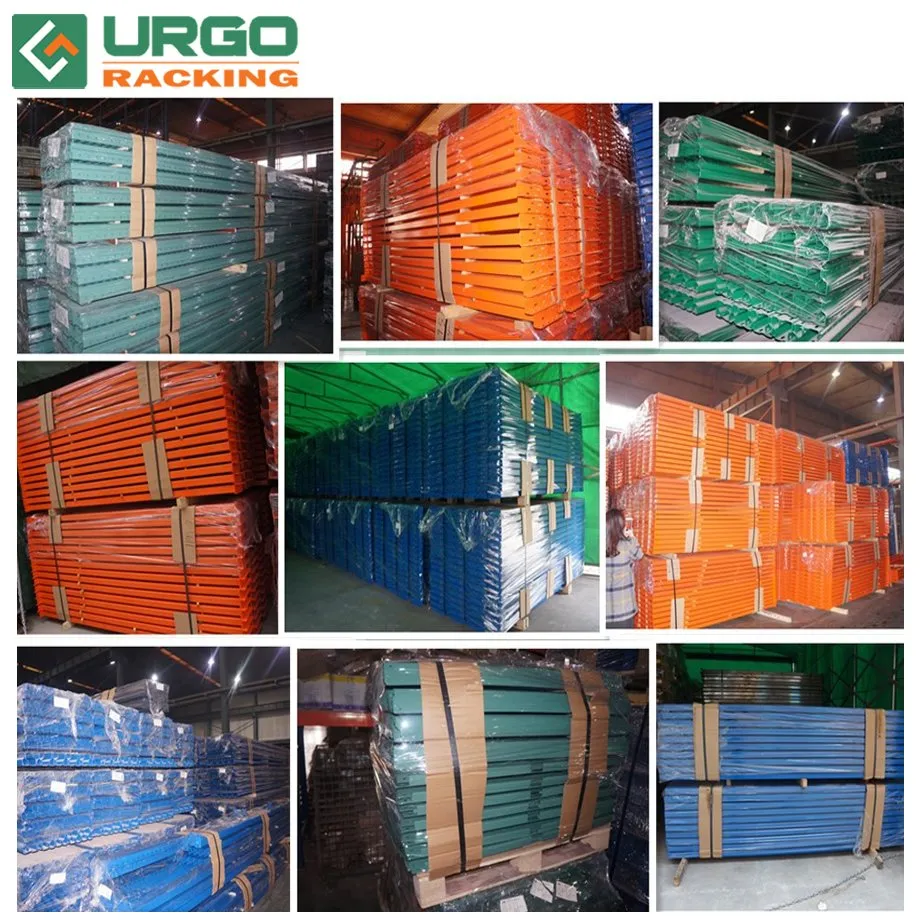

Packaging & Logistics

Package Size:20.00cm * 20.00cm * 20.00cm

Gross Weight:2.000kg

Frequently Asked Questions

What makes your racking systems different from other suppliers?

We provide excellent service with quotes within 12 hours, quick manufacturing (15 days for pallet racking), specialized export packaging with plastic protection for beams and uprights, and a 10-year warranty for normal use.

How can I track the status of my order?

We provide transparency by sending detailed information and production stage photos throughout the manufacturing process.

Are samples available for quality testing?

Yes, we can provide sections of samples for your reference sent via express courier.

Is a galvanized finish available for the pallet racks?

Yes, both pallet racking posts and bracings can be supplied with a high-quality galvanized finish for enhanced durability.

How do I get a quick quotation for my project?

Please provide the required racking dimensions (Height x Depth x Length), the number of levels, the loading capacity per level, and the total quantity required.

Do I need special lift trucks for this system?

No, the selective pallet racking system is designed to be compatible with standard lift trucks, making it highly versatile for most warehouse operations.
