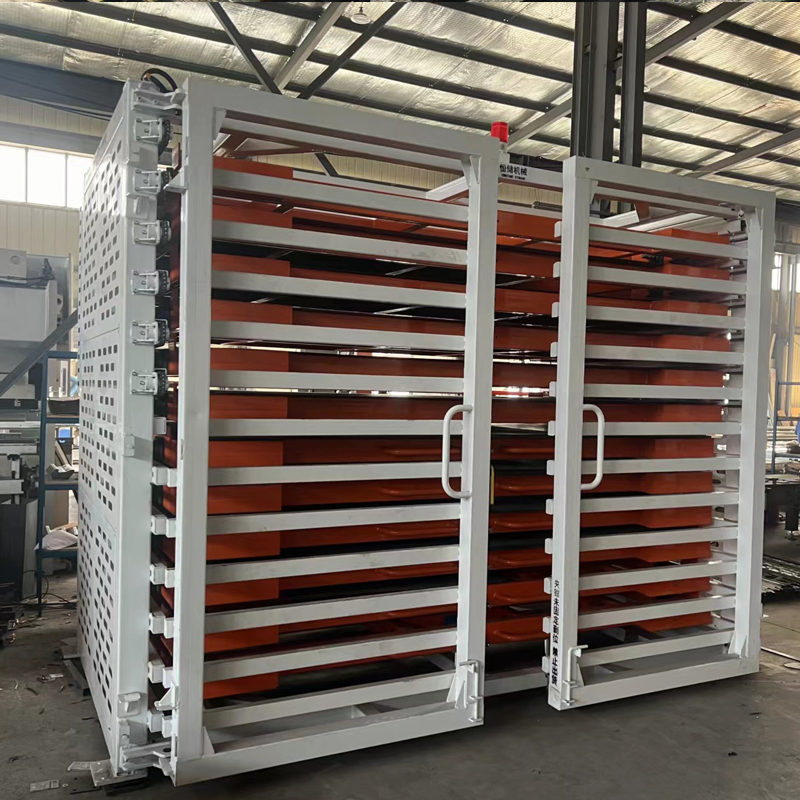

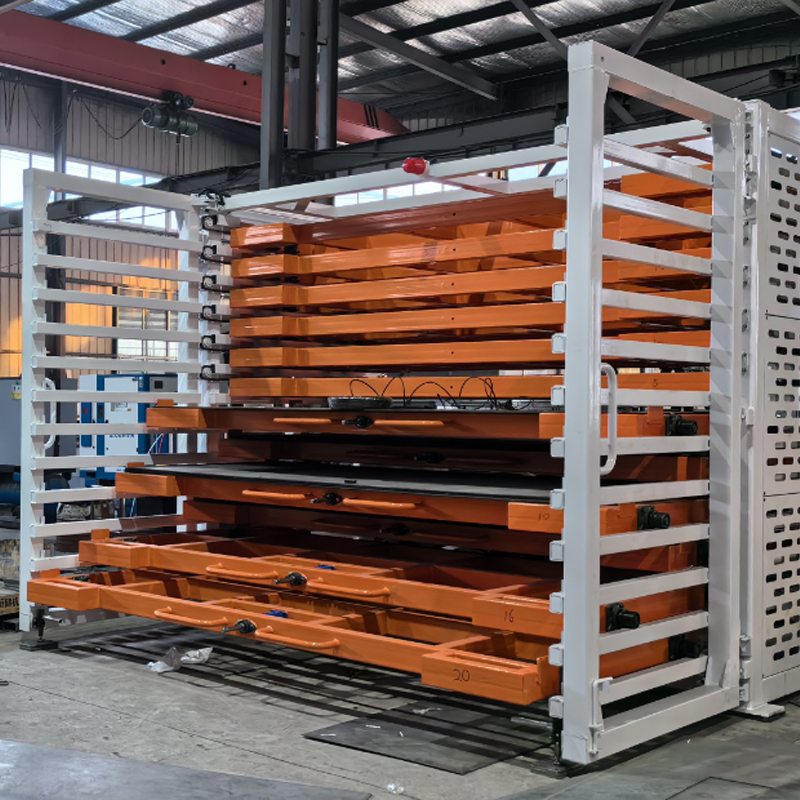

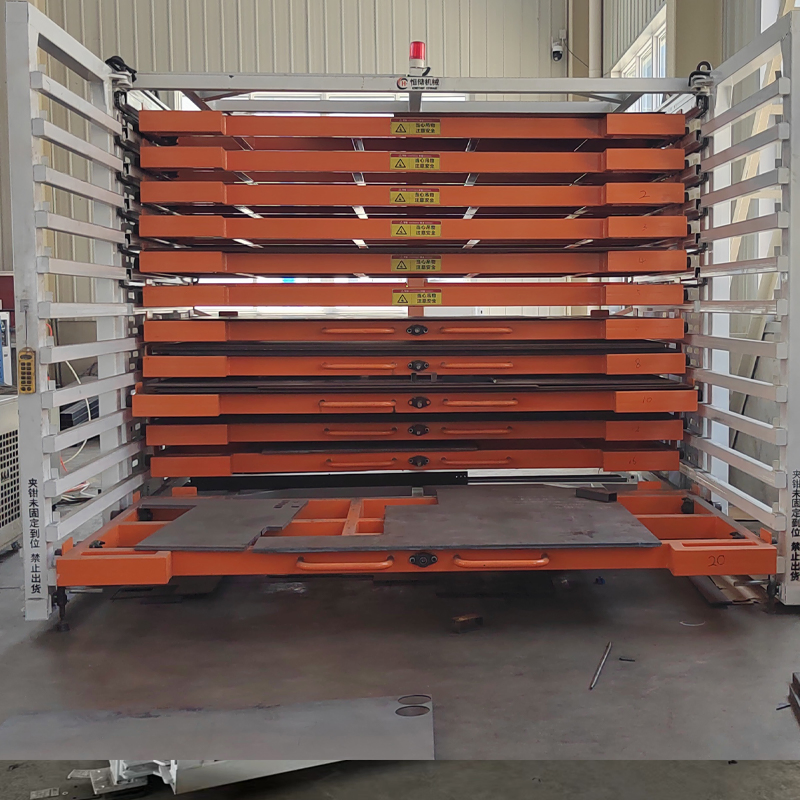

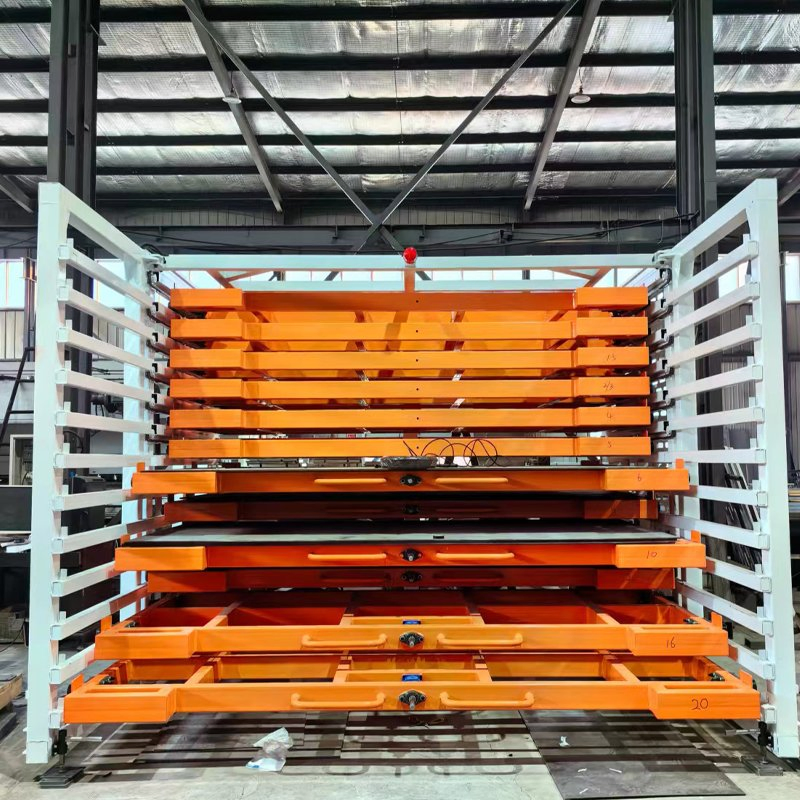

Heavy Duty Roll out Sheet Metal Storage Rack Sliding Steel Plate Organizer with High Capacity & Safety Lock

Basic Information

Model NO.

HC-B4020-65

Usage

Tool Rack, Industrial, Warehouse Rack

Material

Steel

Structure

Drawer

Type

Multi-Level Racking

Mobility

Adjustable

Height

5-15m

Weight

500kg

Loading Per Layer

3tons-8tons

Number of Layers

5+1

Color

Orange/Blue/Customized

HS Code

7308900000

Product Description

⚙️

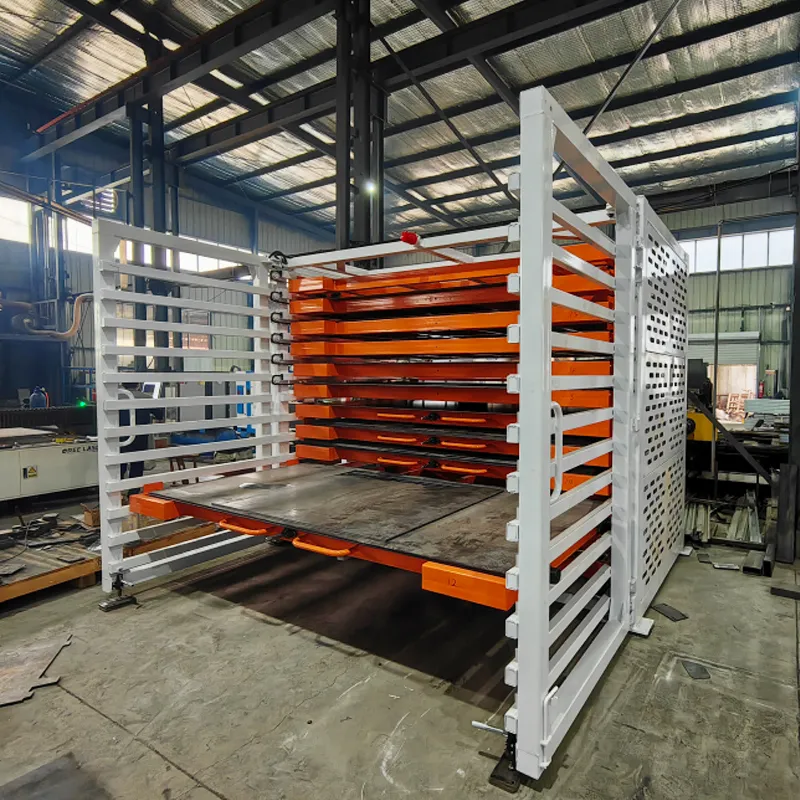

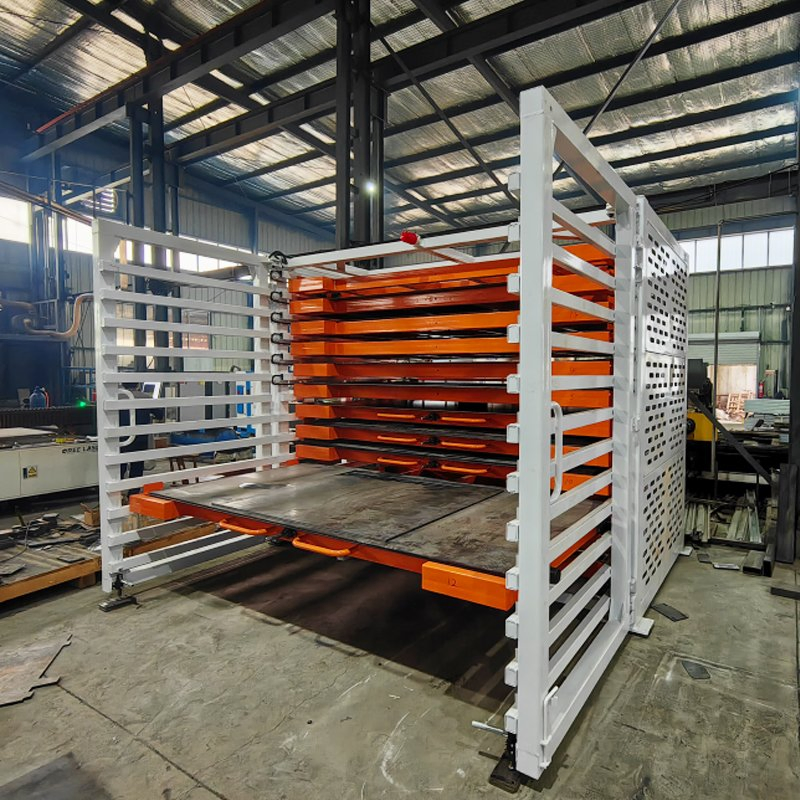

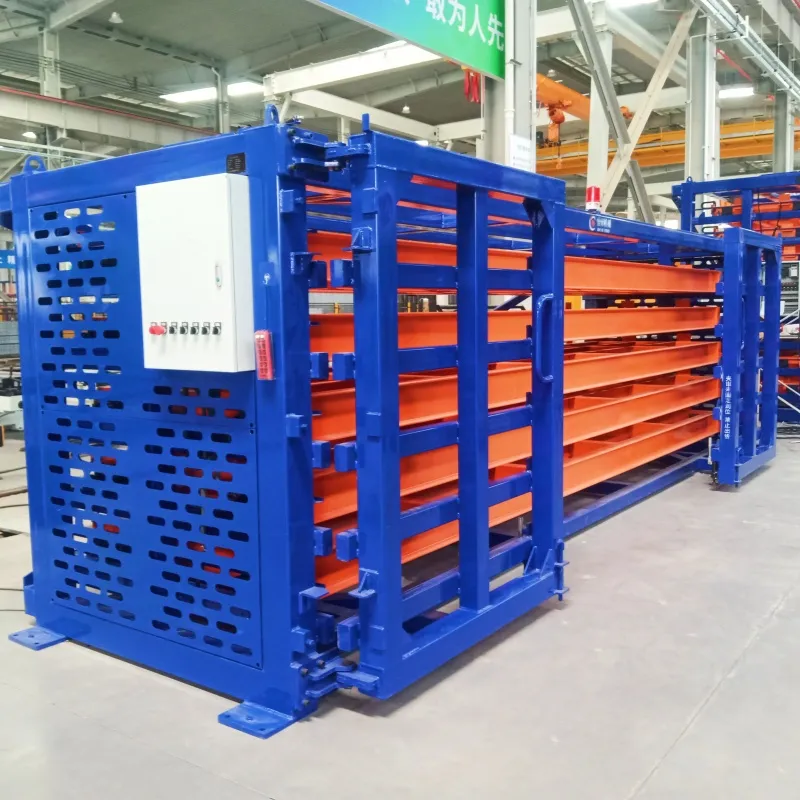

Automated Operation Motorized drawer type sheet metal racking has an automated operation function, allowing sheets to be taken out or stored via an electro-mechanical system, reducing labor and improving efficiency.

🛡️

Sheet Protection Protects sheets from scratching, damage, or bending. Each drawer is independently controlled to ensure maximum material safety.

🏗️

High-Quality Construction Made of Q235B grade carbon steel, the frame is CO2 welded for maximum strength. Steel slide rail technology enables smooth and effortless drawer operation.

Technical Specifications

Project Model	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66
Load (Single Layer)	3t	3t	5t	6t
Plate Size (mm)	3000x1500	4000x1500	4000x2000	6000x2000
Number of Layers	5+1
Available Height (mm)	≤ 220
External Dimensions	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500

Service Advantages

Specialization

15 years dedicated to intelligent warehousing solutions for the sheet metal industry.

Technology

Proprietary software and core equipment patents through independent R&D.

Quality

Core components from internationally renowned brands ensure system reliability.

Packaging & Shipping

Frequently Asked Questions

How can I proceed with procurement?

Please provide your technical parameters, and we will offer a suitable solution and quotation. You may also leave your contact details for a professional consultation.

How do I choose the right shelves for my needs?

Inform us of the material type, dimensions, and the required number of layers. Our team will design a professional storage solution tailored to your warehouse layout.

Do you provide on-site installation and debugging?

Yes, we provide professional personnel for factory installation and debugging until the system is fully operational. We have global service experience across multiple countries.

How do you ensure product quality and safety?

We implement strict quality standards, including load testing before leaving the factory. Our equipment holds CE certification and follows ISO9001 standards to ensure stability.

Can the equipment dimensions be customized?

Yes, both the dimensions and the colors of the shelving systems are fully customizable to meet specific industrial requirements.
