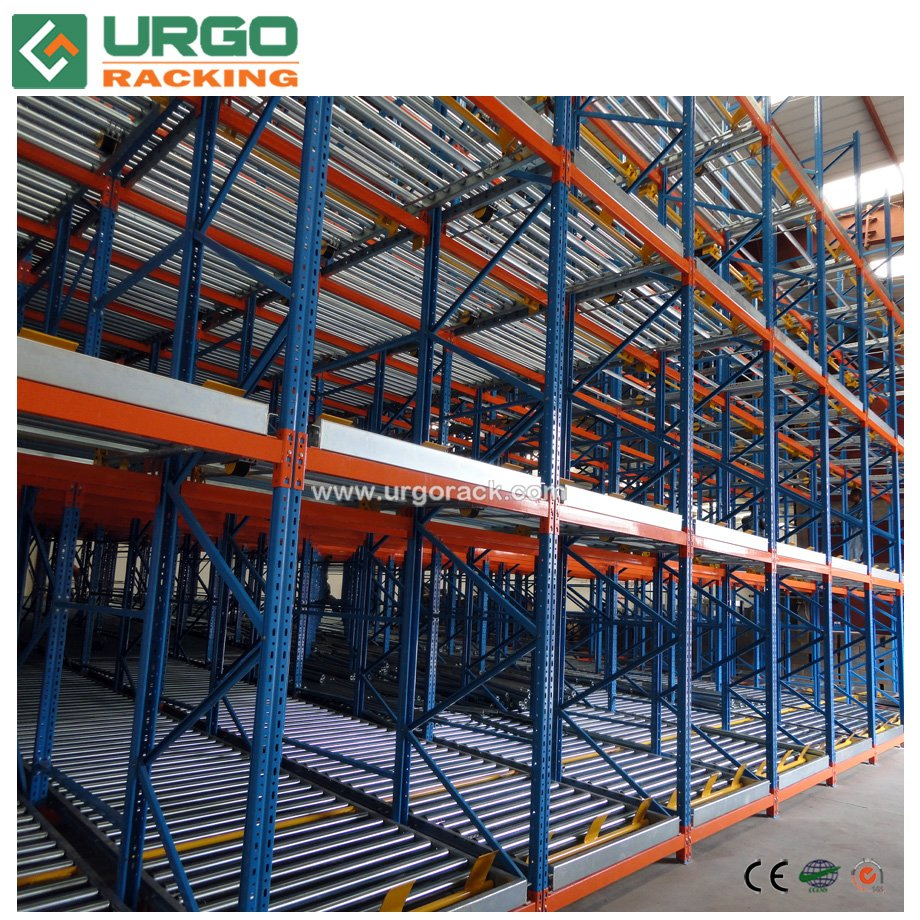

Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
1 / 5
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack
Warehouse Storage Gravity Roller Pallet Rack

Warehouse Storage Gravity Roller Pallet Rack

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

◈ Basic Specifications
Usage
Warehouse Rack
Material
Steel
Structure
Rack
Type
Pallet Racking
Height
5-15m
Weight Capacity
500-5000kg
Surface Treatment
Powder Coating
Feature
Corrosion Protection
Certification
CE
Capacity
80000 tons/Year
◈ Gravity Pallet Racking Overview

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out) solution is required. This system allows pallets to be moved quickly from one area to another without the assistance of lift trucks, utilizing sloping tracks with rollers.

✓ Reduced warehouse costs and space savings.
✓ Efficient goods loading and unloading.
✓ Full FIFO (First In First Out) storage management.
✓ Heavy-duty construction for long service life.
✓ Reduced aisle space by 60-70%.
✓ Minimized forklift damage to racking structures.

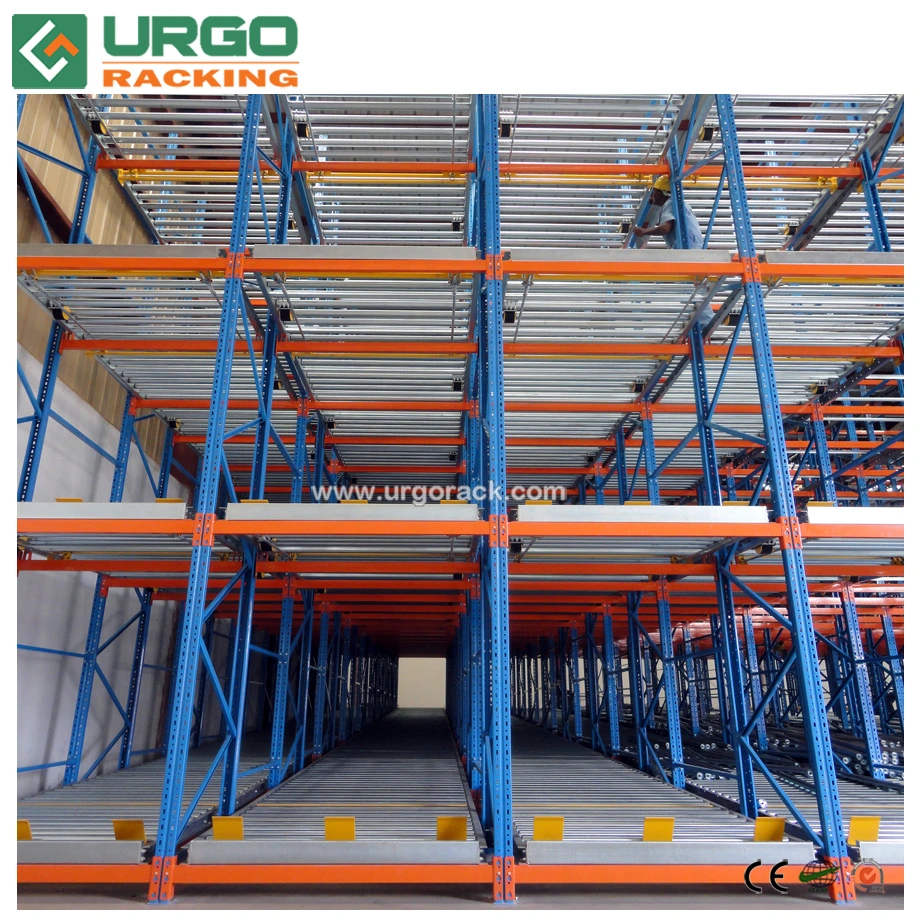

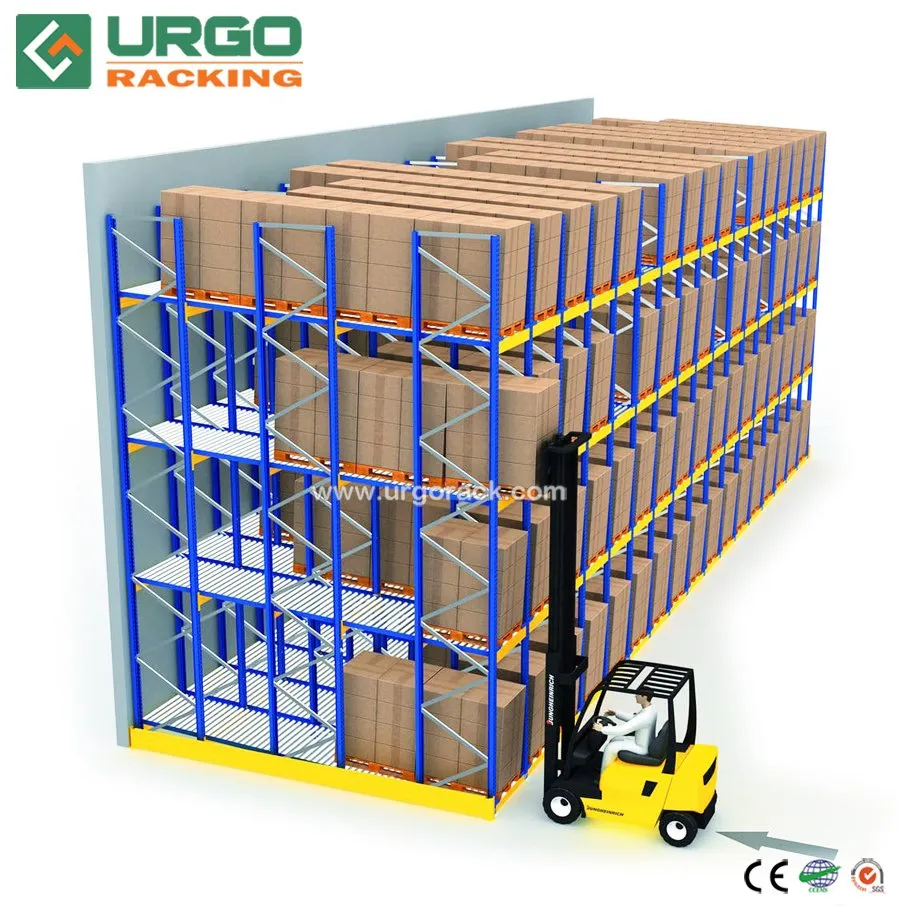

Gravity Roller Pallet Rack

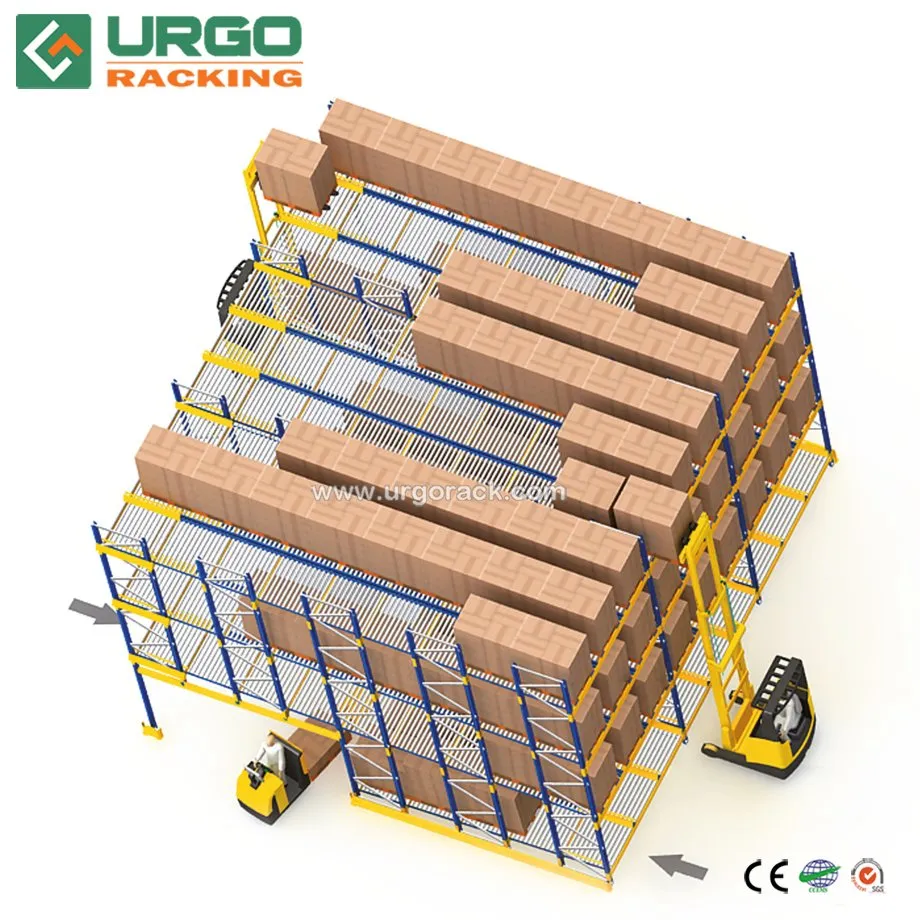

Warehouse Storage Rack
◈ Column Profiles
Column Specification (mm) Thickness (mm) Upright Loading (kg)
W80 x D601.8-2.04000-6000 KG
W85 x D671.8-2.37500-12500 KG
W90 x D601.8-2.58000-10000 KG
W90 x D701.8-2.510000-12000 KG
W100 x D702.0-2.511000-14000 KG
W120 x D952.3-3.017000-21000 KG
◈ Beam Loading Capacity (Box Beam)
Spec (mm) 1500mm 2300mm 2700mm 3300mm 3900mm
80x50x1.5300013401010--
100x50x1.5-226016801040-
120x50x1.5-320023581518-
160x50x1.5--422029702340

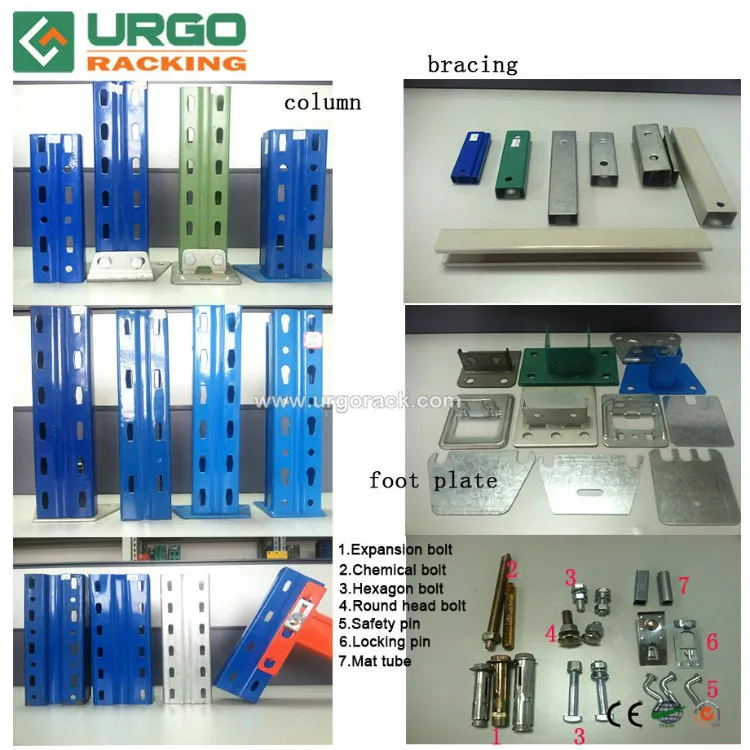

System Detail 1

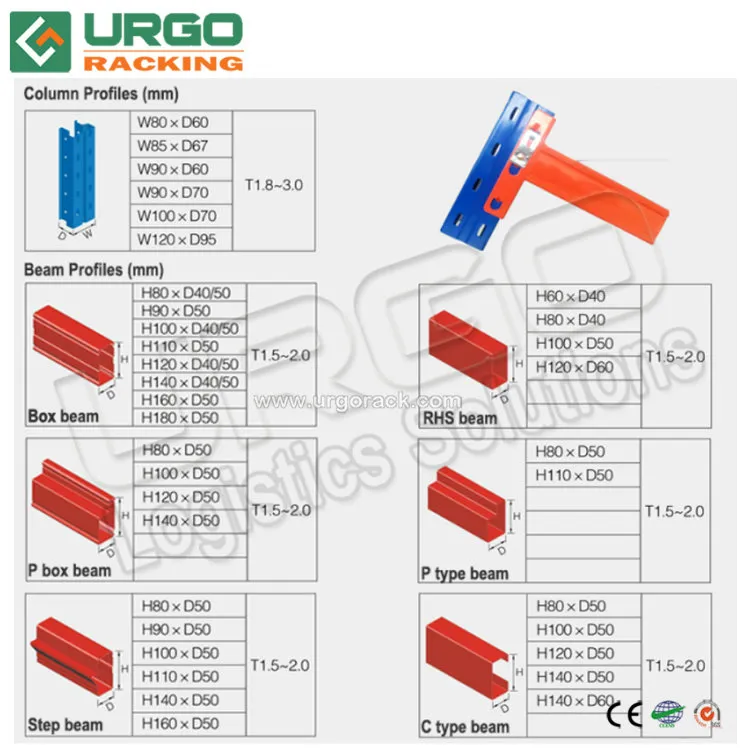

System Detail 2

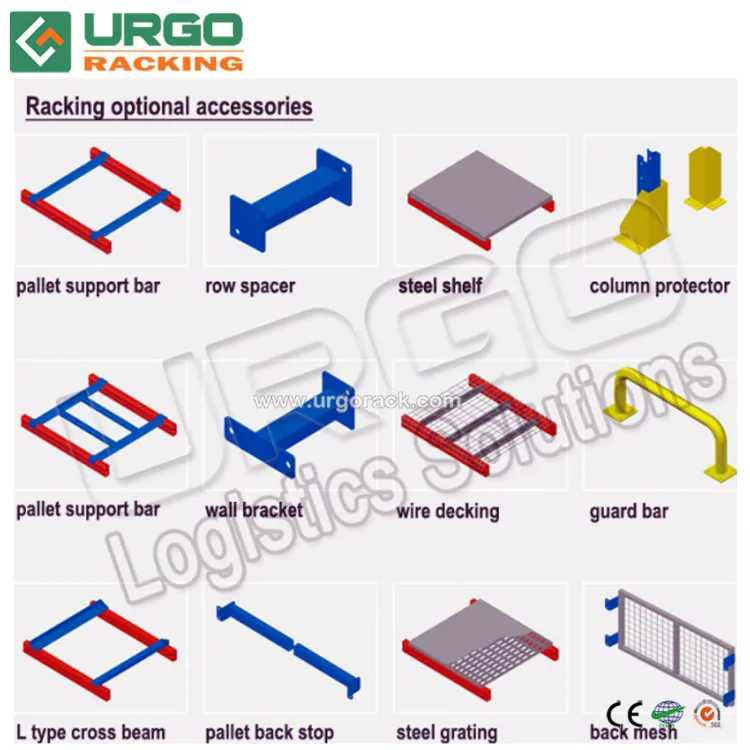

System Detail 3
◈ Packaging and Shipping

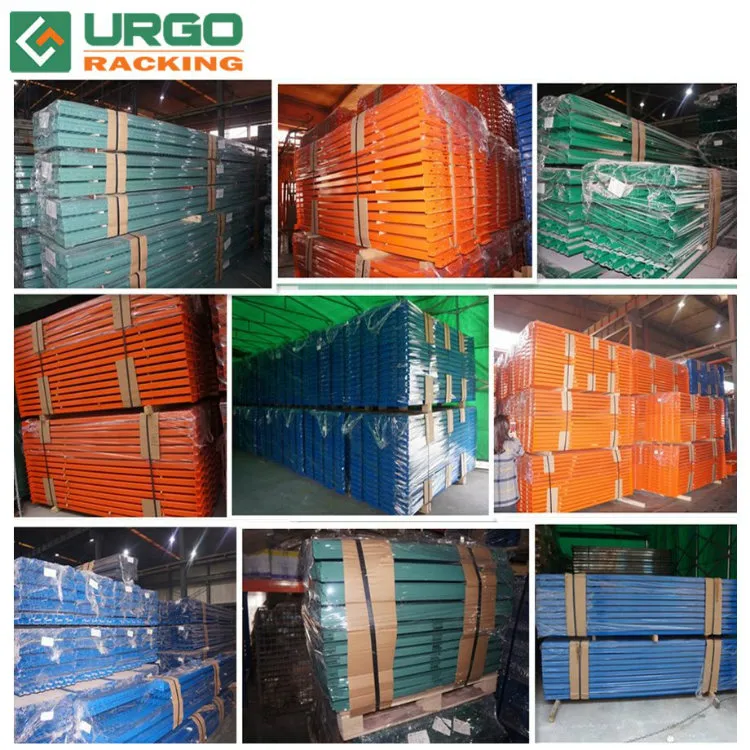

Export Packing
◈ Frequent Questions & Answers
1. What are the main advantages of this racking system?
It offers an excellent FIFO solution, increases warehouse utilization by reducing aisle space by up to 70%, and minimizes forklift travel and damage.
2. Can I get a status update on my order?
Yes, we provide progress information and photos at different production stages so you can stay updated on your order's status.
3. Are samples available for quality checking?
Yes, we can provide sample sections of our racking for your reference via express delivery.
4. Is a galvanized finish available for these racks?
Yes, both posts and bracings are available with a galvanized finish for enhanced durability and corrosion protection.
5. What information is needed for a quick quotation?
Please provide the required racking dimensions (Height*Depth*Length), the number of levels, loading capacity per level, and the total quantity needed.
6. How is the product protected during export transportation?
We use plastic clips on beams to prevent surface damage and wrap all uprights in transparent plastic film for maximum protection.
